Exhibiting high standards of quality and exceptionally high contact life our electric power contactors provide trouble free and noise less operation. These electric contactors are vacuum impregnated, machine wound, baked and is tested for inter-turn short circuit.

» SL 1

Contact System
The silver alloy contacts have a long electrical life as they operate in a double break contact system with minimum bounce contacts are easily accesible for inspection or replacement. All you do is to life the moving contact carrier with his screw driver on the contacts can be pulled out.

Magnet System
The laminated construction is designed gor losses shedding rings provided to reduce hum and chatter.

Coil

The coil is tropicalised for trouble free services and long life. The plugin type coil is accesible from front. Wide range of coils offer you a choice of control voltages.

Mounting
The electric contactors can be mounted in any position in vertical plane. The mounting holes are easily accesible and three point mounting mininizes assembly time.

Spares and Accessories
A spares kit containing fixed and moving contacts, screws and washers is available. Mechanically interlocked pairs of electric contactors are available for sequential operation. The thermal overload relays suitable for electric contactors are available in ranges from 0.15-0.25A to 10-16A. Separately mounted relays are available in ranges from 13-21A to 20-32A

Specification SL 1

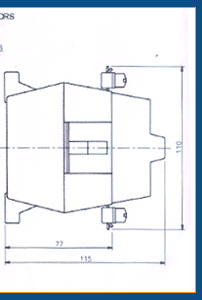

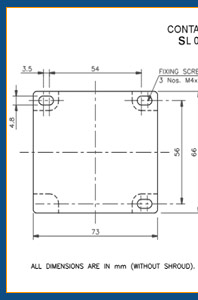

Dimensional Details

» SL 1.5

Contact System
The silver alloy contacts have a long electrical life as they operate in a double break contact system with minimum bounce contacts are easily accesible for inspection or replacement. All you do is to life the moving contact carrier with his screw driver on the contacts can be pulled out.

Magnet System
The laminated construction is designed gor losses shedding rings provided to reduce hum and chatter.

Coil

The coil is tropicalised for trouble free services and long life. The pluggin type coil is accesible from front. Wide range of coils offer you a choice of control voltages.

Mounting
The contactors can be mounted in any position in vertical plane. The mounting holes are easily accesible and three point mounting mininizes assembly time.

Spares and Accessories
A spares kit containing fixed and moving contacts, screws and wahsers is available. Mechanically interlocked pairs of contactors are available for sequential operation. The thermal overload relays suitable for contactors are available i nranges from 0.15-0.25A to 10-16A CAT NO. SS 91858. Separately mounted relays are available inranges from 13-21A to 20-32A CAT NO. SS 91859.

Specification SL 1.5

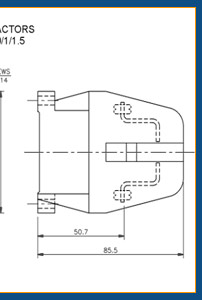

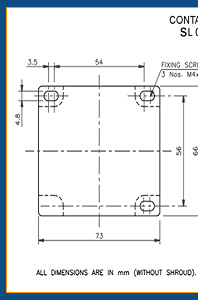

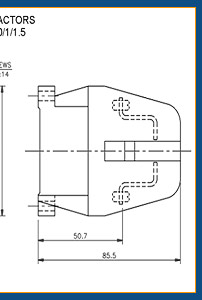

Dimensional Details

» SL 2 and SL 3

SKYU's SL 2 and SL 3 contactors are specially designed for tropical conditions. They are reliable; withstand high ambients, humidity, under voltage conditions and frequent starts.

Contact System
The silver alloy contacts of the main pole ensure long contact life. The contact system is designed to keep contact bounce to a minimum. Contacts are shrouded with the are chute. Both fixed and moving contacts are accessible for inspection or replacement without disturbing terminal wiring.

Magnet System
The laminated construction is designed gor losses shedding rings provided to reduce hum and chatter.

Coil

The vaccum impregnated and baked coil is ideal for tropical conditions. Inter-layer insulation provides insulation of a high level. The coil is accessible from the front. With the economy resistor kit, the contactors can be used on dc control systems as well.

Mounting
The contactors can be mounted in any position on a vertical plane. Three-point mounting, two of which are 'U' slots, reduces panel mounting time.

Spares and Accessories
A spares kit containing fixed and moving contacts, springs, screws and washers is available. Mechanically interlocked contactors, for reversing duties and other applications are also available. Thermal overload relays, suitable for contactor mounting are available in ranges from 9-14A to 28-42A.

Specification SL 2

Specification SL 3

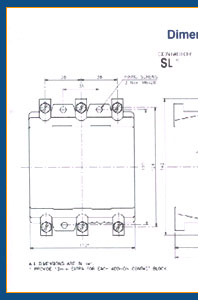

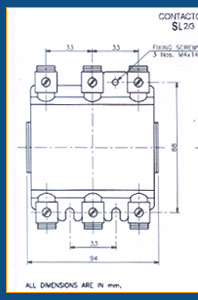

Dimensional Details

» SL 4 and SL 6

SKYU'S contactors type SL 4 and SL 6 are designed to withstand high ambients, humidity, undervoltage conditions and frequent starts. They are suitable for AC-4 duty-inching and plugging operations.

Contact System
Silver alloy main contacts are shrouded with an arc chamber which has de-ion plates. This feature, plus the double- break contact system with minimum bounce, ensures long contact life. Fixed and moveing contacts are accessible by removing just two screws. The fixed contact design is based on the ingenious 'split-contact' technique which permits contact replacement without disturbing terminal wiring.

Magnet System
Laminated construction minimises losses.

Coil
Ideal for tropical conditions. Unaffected by high ambients and strong enough to withstand damage even in case of accidental mishandling. The coil is easily accessible from the front and can be conveniently replaced.

Mounting
Standard 3-point mounting minimises assembly time. Mounting system is on rear housing, made of die -cast aluminium alloy. The contactors can be mounted in any position on a vertical plane. Thermal overload relays are suitable for contactor or separate mounting. For SL4: 30-48A and 45-70A & For SL 6 (serperate mounting only): 60-100A and 90-150A.

Specification SL 4

Specification SL 6

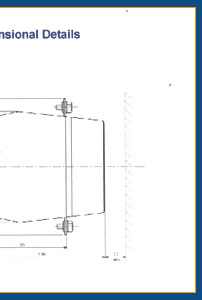

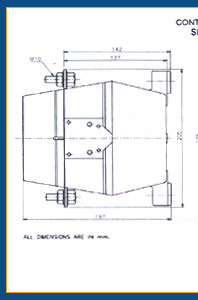

Dimensional Details

» SL 10 and SL 12

Coil & Magnet System
The magnet system is designed for smooth operation without double pick- up. The coil, totally enclosed by the power magnet, ensures low power consumption. Front accessibility makes coil replacement easy.

Add-on Auxiliary Contact Blocks
To meet your changing control circuit requirements,add-on auxiliary contact blocks provide an economical solution. an add-on of l NO + 1NC is mounted on each side, increasing the auxiliary contacts upto 4NO + 4NC.

Mounting
Easy accessibility of the mounting holes facilitates installation. ML 10 and ML 12 can be mounted in any position on a vertical plane. Three-point mounting minimises assembly time.

Add-on Auxiliary Contact Blocks
To meet your changing control circuit requirements, add-on auxiliary contact blocks provide an economical solution. an add-on of l NO + !NC is mounted on each side, increasing the auxiliary contacts upto 4NO + 4NC.

Mounting
Easy accessibility of the mounting holes facilitates installation. SL 10 and SL 12 can be mounted in any position on a vertical plane. Three-point mounting minimises assembly time.

OverLoad Protection
Seperately mounted C.T operated thermal overload relays are available upto 300A

Mechanical Interlock
Mechanical interlock assembly for SL10 and SL12 can be made available,ideal for applications with considerable mechanical vibrations.

Specification SL 10

Specification SL 12

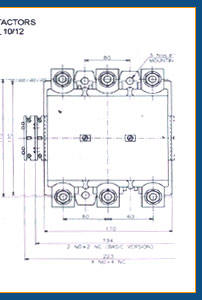

Dimensional Details

Highly elegant in design and appearance the starters offered by us are widely used in industrial and agricultural sector. These are so designed to withstand high ambient temperature, humidity and under voltage conditions and also exceptionally low temperatures. The starters are suitable for category AC-3 duty and has exceptionally long contact life of air break contactor used in motor starter.
